Digital Conductivity TDS Meter, Digital TDS meter
Digital Conductivity TDS Meter

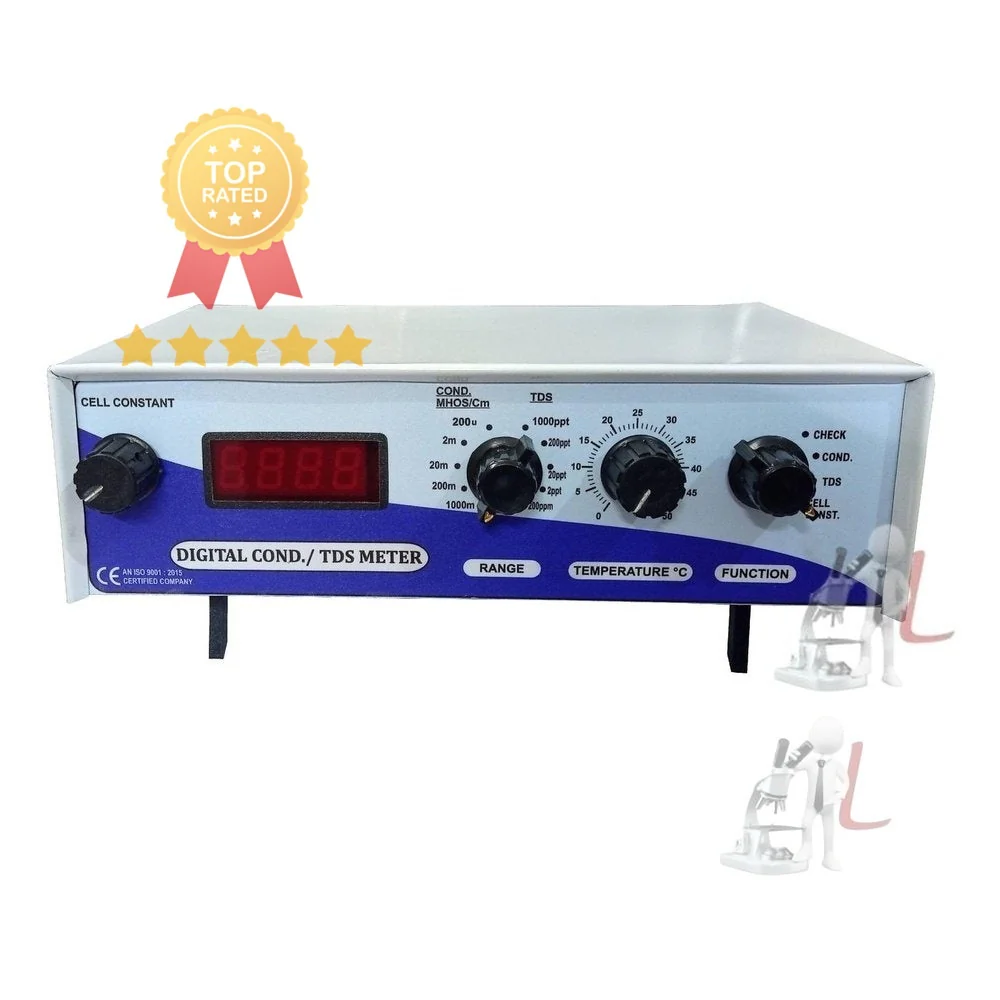

Digital Conductivity-TDS Meter 064-G is a solid-state instrument designed to provide the precise Conductivity and TDS measurements. The instrument is ideal for monitoring salt contents in Natural water, Drinking Water, Treated Water, Waste water, Brine Solution, Sea Water and soluble salt in soils. A multi position selector switch quickly sets the digital display to the desired test range. The LED display is easy to read even in the dark. The uses of the solid state I.C. circuitry makes the model versatile and reliable. The instrument is extremely useful for agriculture and soil analysis laboratories. Swimming pools, water quality control in boiler feed water, water works department, fertilizer plants, petroleum refineries, transport undertakings breweries, textile plants, rayon & silk mills etc.
TECHNICAL SPECIFICATIONS
|
General
|
|
|
||
|
Parameters
|
:
|
Conductivity and TDS
|
||
|
Display
|
:
|
3 ½ Digit Bright Red LED Display
|
||
|
Power supply
|
:
|
230V ± 10% AC,50 Hz.
|
||
|
Function Selector
|
:
|
CHECK /COND/TDS/CELL CONST.
|
||
|
Temperature Compensation
|
:
|
0 to 50° C (Manual)
|
||
|
Power Supply
|
:
|
220V AC ± 10% Hz
|
||
|
Dimension
|
:
|
275 × 175 × 75 mm
|
||
|
Weight
|
:
|
2 KG.
|
||
|
Conductivity
|
||||
|
Range
|
:
|
0-200 µS/cm, 0-2 mS/cm, 0-20 mS/cm, 0-200 mS/cm,
0-1000 mS/cm
|
|
|
|
Accuracy
|
:
|
± 1% F.S. ± 1 Digit
|
|
|
|
Resolution
|
:
|
0.1 µS/cm
|
|
|
|
Cell Constant
|
:
|
0.4 to 1.6 Adjustable
|
|
|
|
Measuring Cell
|
:
|
Platinum Cell Dip Type
|
|
|
|
TDS
|
||||
|
Range
|
:
|
0-200 ppm, 0-2 ppt, 0-20 ppt, 0-200 ppt, 0-1000 ppt
|
|
|
|
Accuracy
|
:
|
± 1% F.S. ± 1 Digit
|
|
|
|
Resolution
|
:
|
0.1 µS/cm
|
|
|
|
Cell Constant
|
:
|
0.4 to 1.6 Adjustable
|
|
|
|
Measuring Cell
|
:
|
Platinum Cell Dip Type
|
|
|
|
Standard Accessories
|
||
|
1.
|
Conductivity/TDS Cell (Dip Type)
|
1 Nos
|
|
2.
|
Electrode Stand
|
1 Nos
|
|
3.
|
Operation Manual
|
1 Nos
|
|
4.
|
Dust Cover
|
1 Nos.
|
Original: $58.48
-70%$58.48
$17.54Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Digital Conductivity TDS Meter
Digital Conductivity-TDS Meter 064-G is a solid-state instrument designed to provide the precise Conductivity and TDS measurements. The instrument is ideal for monitoring salt contents in Natural water, Drinking Water, Treated Water, Waste water, Brine Solution, Sea Water and soluble salt in soils. A multi position selector switch quickly sets the digital display to the desired test range. The LED display is easy to read even in the dark. The uses of the solid state I.C. circuitry makes the model versatile and reliable. The instrument is extremely useful for agriculture and soil analysis laboratories. Swimming pools, water quality control in boiler feed water, water works department, fertilizer plants, petroleum refineries, transport undertakings breweries, textile plants, rayon & silk mills etc.
TECHNICAL SPECIFICATIONS
|
General
|
|
|
||
|
Parameters
|
:
|
Conductivity and TDS
|
||
|
Display
|
:
|
3 ½ Digit Bright Red LED Display
|
||
|
Power supply
|
:
|
230V ± 10% AC,50 Hz.
|
||
|
Function Selector
|
:
|
CHECK /COND/TDS/CELL CONST.
|
||
|
Temperature Compensation
|
:
|
0 to 50° C (Manual)
|
||
|
Power Supply
|
:
|
220V AC ± 10% Hz
|
||
|
Dimension
|
:
|
275 × 175 × 75 mm
|
||
|
Weight
|
:
|
2 KG.
|
||
|
Conductivity
|
||||
|
Range
|
:
|
0-200 µS/cm, 0-2 mS/cm, 0-20 mS/cm, 0-200 mS/cm,
0-1000 mS/cm
|
|
|
|
Accuracy
|
:
|
± 1% F.S. ± 1 Digit
|
|
|
|
Resolution
|
:
|
0.1 µS/cm
|
|
|
|
Cell Constant
|
:
|
0.4 to 1.6 Adjustable
|
|
|
|
Measuring Cell
|
:
|
Platinum Cell Dip Type
|
|
|
|
TDS
|
||||
|
Range
|
:
|
0-200 ppm, 0-2 ppt, 0-20 ppt, 0-200 ppt, 0-1000 ppt
|
|
|
|
Accuracy
|
:
|
± 1% F.S. ± 1 Digit
|
|
|
|
Resolution
|
:
|
0.1 µS/cm
|
|
|
|
Cell Constant
|
:
|
0.4 to 1.6 Adjustable
|
|
|
|
Measuring Cell
|
:
|
Platinum Cell Dip Type
|
|
|
|
Standard Accessories
|
||
|
1.
|
Conductivity/TDS Cell (Dip Type)
|
1 Nos
|
|
2.
|
Electrode Stand
|
1 Nos
|
|
3.
|
Operation Manual
|
1 Nos
|
|
4.
|
Dust Cover
|
1 Nos.
|
