Magnetic Stirrer with Hot Plate, 2-Liter Capacity

Magnetic Stirrer with Hot Plate, 2-Liter Capacity

The "ML" series of Magnetic Stirrers with stainless steel top housing are highly compact models. They are equipped with a Permanent Magnet DC (PMDC) motor, providing high torque even at lower speeds and maintaining speed stability despite changes in viscosity or volume. Various models are available, capable of handling laboratory stirring applications up to 10 liters. The stepless speed control with a digital display allows smooth speed variation up to 1200 rpm.

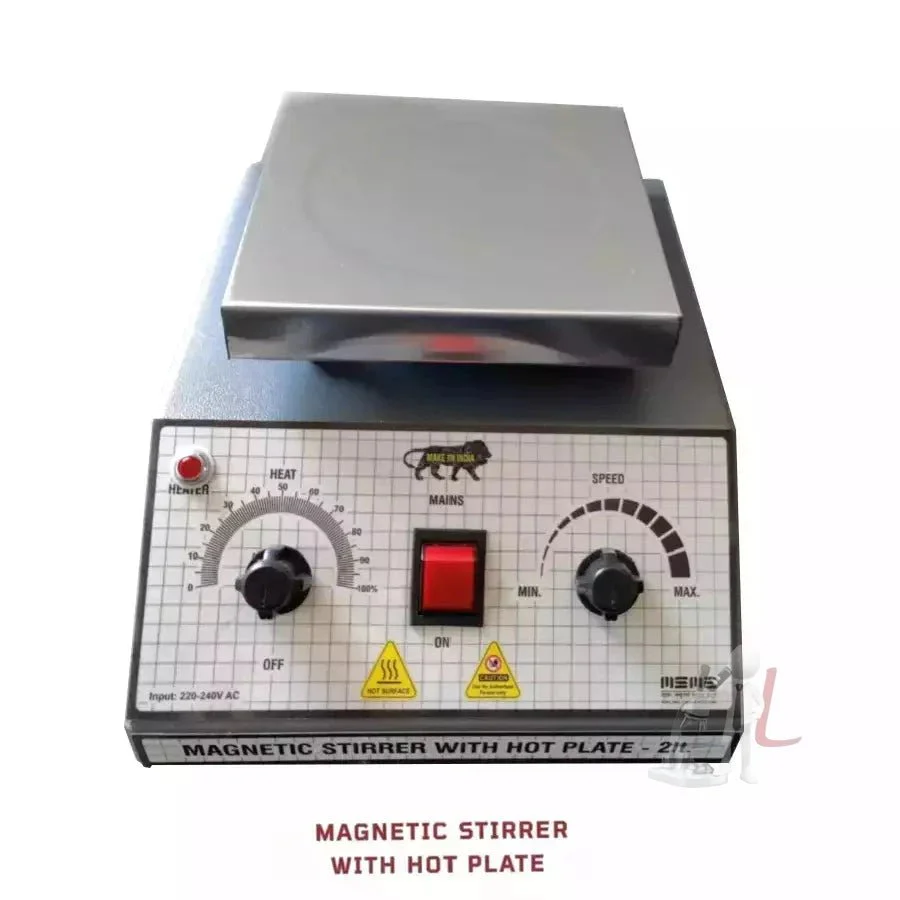

The "MLH" series Magnetic Stirrers with hot plate share the same features as the ML series but include an additional stainless steel hot plate. Heat is controlled via an energy regulator.

Key Features:

• PMDC motor ensures high torque at low speeds.
• Improved speed regulation, even with small volumes and at low speeds.
• Accurate stepless speed control for maintaining excellent speed stability.
• Fully enclosed design for use in corrosive environments.

Technical Specifications:

Models	Stirring Capacity	Heating Capacity	External Dimensions (W x D x H) mm	Stirring Paddle (PTFE Coated) Ø x length
Stirrers without Hotplate
MS 500	500 ml	–	105 x 135 x 70	Q-18A 7 x 15 mm
1 ML (Digital Speed)	1 L	–	150 x 220 x 150	Q-19 9 x 25 mm
2 ML (Digital Speed)	2 L	–	150 x 220 x 150	Q-19A 9 x 35 mm
5 ML (Digital Speed)	5 L	–	180 x 220 x 150	Q-20A 13 x 50 mm
Stirrers with Hotplate
1 MLH (Digital Speed)	1 L	150 W	200 x 225 x 185	Q-19 9 x 25 mm
2 MLH (Digital Speed)	2 L	300 W	200 x 225 x 185	Q-19A 9 x 35 mm
5 MLH (Digital Speed)	5 L	500 W	200 x 225 x 185	Q-20A 13 x 50 mm
