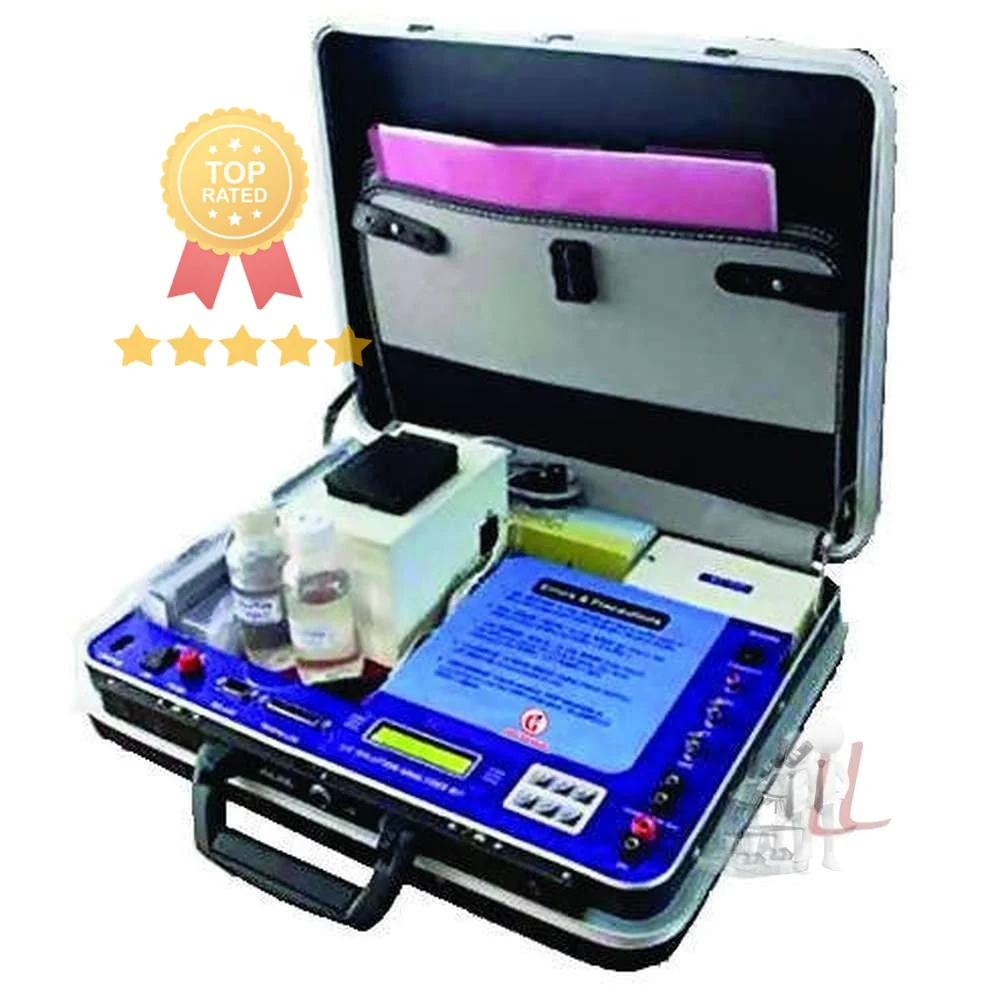

Microprocessor Based Water & Soil Analysis Kit (8 Parameters)

pH

Range                         : 0-14 pH

Resolution                  : 0.01pH

Accuracy                    : + 0.01 pH ( relative)

Temp. Comp.             : Automatic with Pt100 Sensor

                                      &Manual by keys

Buffer Recognition    : 4.00 , 7.00 , 9.20 ( Automatic)

Calibration                 : Automatic & Manual

                                    : 2 Point, 3 Point(Prog.)

Dissolved  Oxygen

Range                       : 0 to 20 ppm

Resolution                 : 0. 1 ppm

Calibration               :  Automatic

Accuracy                   : + 0.2 ppm + 1digit

Temp. Comp.            : Automatic with Pt100 Sensor &

                                      Manual By keys

Pressure comp.         : 0-999 mm of Hg ( Manual)

Salinity Correction   : 0-20 mg/l

mv/ORP

Range                          : - 1999 to +1999 mV

Resolution                   : 1 mV

Calibration                 : Manual

Accuracy                     : + 0.1% + 1digit

Temperature

Range                    : -20.0 to +200 degree C

Resolution             : 0.1 degree C

Accuracy               : + 0.2% + 1digit

Input                      : Pt100

Calibration            :  Manual

Conductivity

Range                         : 0-1000 mS/cm

Range Selection         : Automatic

Resolution                  : 0.01/ 0.1/ 1 uS/cm or mS/cm as

                                      per range

No. of Ranges            : Six

Accuracy                    : + 0.5%

Temp. Comp.             : Automatic with Pt100 Sensor

Ref. Temp.                  : 25 degree C/20 degree C(Prog.)

Temp. Co-efficient     : 0-4%  adjustable

Cell constant               :  0.05 to 2.0 adjustable

TDS

Range                         : 0-200ppt in 5-ranges Automatic

Resolution                  : 0.01/0.1/1 ppm or ppt as per                                             range

Temp. Comp.             : Automatic

Accuracy                    : + 0.5%

TDS Factor                : 0.50 by default(adjustable)

Cell constant              :  0.05 to 2.0 adjustable

Ref. Temp.                  : 25 degree C/20 degree C(Prog.)

Turbidity

Range                      : 0-1000 NTU in Two Ranges

Resolution              : .1 NTU in lowest Range

Range Selection     :  Automatic

Accuracy                : ±3% FS±1-digit

Detector                  : Photodiode/Photocell

Sample System       : 30 mm Clear Glass test tube

Light Source          : 6V Tungsten Lamp

Calibration            : Manual

Salinity

Range                           : 0-200ppt in 5-ranges Automatic

Resolution                    : 0.01/0.1/1 ppm or ppt as per

                                        range

Temp. Comp.               : Automatic

Accuracy                      : + 0.5%

Salinity factor              :  0.75  by default( adjustable)

Cell constant               :  0.05 to 2.0 adjustable

Ref. Temp.                  : 25 degree C/20 degree C(Prog.)

General

Display                       : 16  characters X 2 lines alpha

                                      Numeric BL LCD

Display format          : Temp. and parameter

                                       Simultaneously

Real Time Display    :  24 Hour Mode With Date &

                                       Time

Controls                     :  By soft keys Menu Driven

Storage                       :  Up to 1000 samples

Power  Supply            :  230 V +10 % 50 Hz & Inbuilt                                             12 V Rechargeable battery

Digital Output       : Serial RS-232

                                : Parallel Centronics

Print format           : All Data

                               : Date Wise    (Programmable)  Error Indication  : pH Error,ORP Error,T-Error

Data Interface:

RS232 & Parallel output available for interfacing to computer/printer

Accessories

1.  pH electrode                                      2.  Buffer solutions

3. Conductivity/TDS/Salinity Cell       4.  Temp. probe

5. DO probe, DO membranes, KCL    6. Operation manual      7. ORP Electrode AT EXTRA COST  8. Test Tubes
