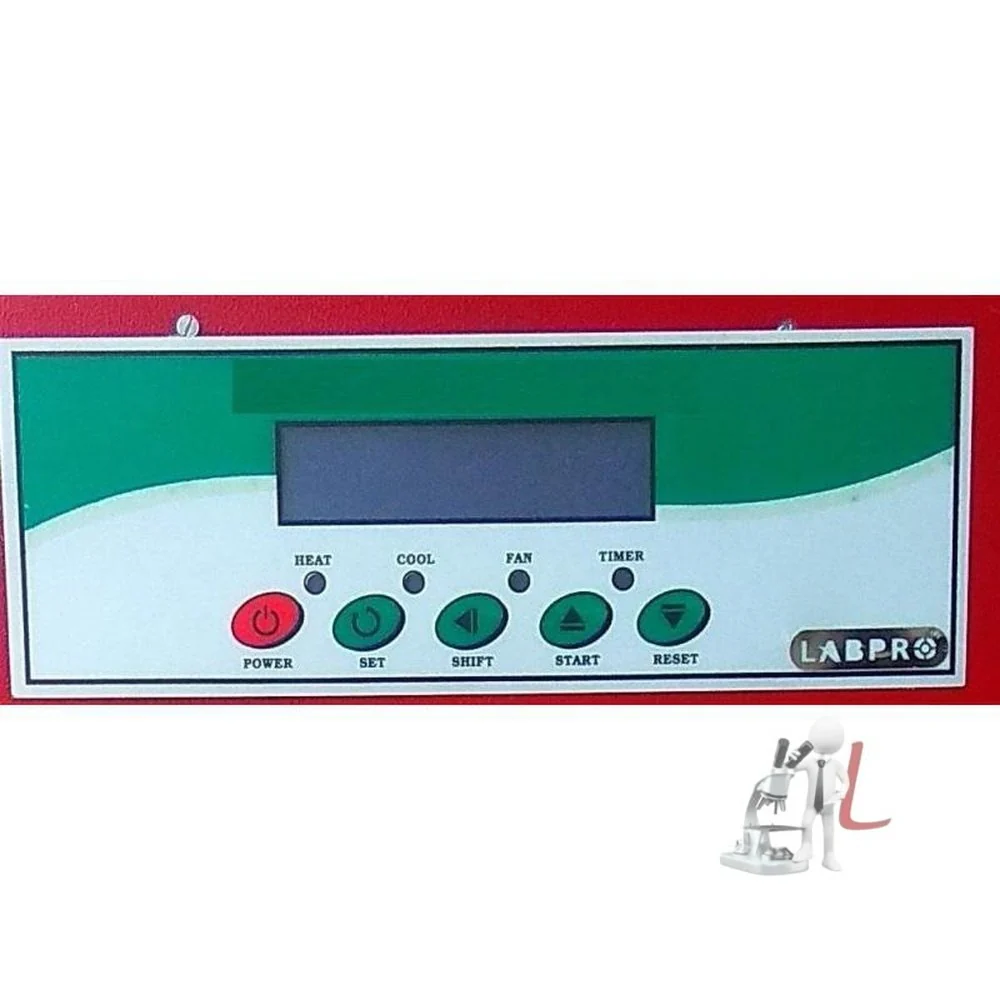

1. DISPLAY TYPE

: 16 x 2 Character LCD

2. STATUS LED’S

: OP1

: Control Output Status

OP2

: Output 2 Status

ST

: Soak Time Status

3.

AT

: Tune Status

Sensor input

: TC:J,K & RTD Pt-100

Analog input

: 0 - 10 VDC, 0 - 20 mA, 4 - 20 mA

Range

: Refer below Table.

Sensor Type

Range

Resolution

Accuracy

Fe-k(J) T/C

0 ~ 760^oC

1 ^oC

}

Cr-AL(K) T/C

-99 ~ 1300^oC

1 ^oC

± 1 ^oC

Pt-100(RTD)

-100 ~ 450^oC

1 ^oC

Pt-100(RTD 0.1)

-99.9 ~ 450.0^oC

0.1 ^oC

± 0.3 ^oC

Sampling Time

: 125 msec.

Resolution

: 1°C

CJC for TC

: Built in automatic

LWC for Pt-100

: Built in up to 18E max.

Digital Filter

: 1 to 10 Sec.

4.

Contact type

: N/O, COM

Contact Rating

: 5A @ 250VAC or 30 VDC

Life expectancy

: > 5,00,000 operations

Isolation

: Inherent

5. SSR DRIVE OUTPUT

Drive Capacity

: 12V @ 30mA.

Isolation

: Non-Isolated.

6. FUNCTION

Output 1

: Main Control output (Factory Set)

1) Relay

2) SSR

Output 2

: Programmable

1) Auxiliary control

2) Alarm

3) None

Output 3

: 1)Auxiliary Control

2) Alarm

3) Soak Timer

4) None

Control Action

: ON-OFF/PID (Select)

Control Mode

: Heat/Cool (Select)

7. ENVIRONMENTAL

Operating Range

: 0 ~50°C, 5~90% Rh

Storage Humidity

: 95% Rh (Non-condensing)

8. POWER SUPPLY

Supply Voltage

: 90~270VAC, 50/60Hz.

Consumption

: 4W Maximum.
