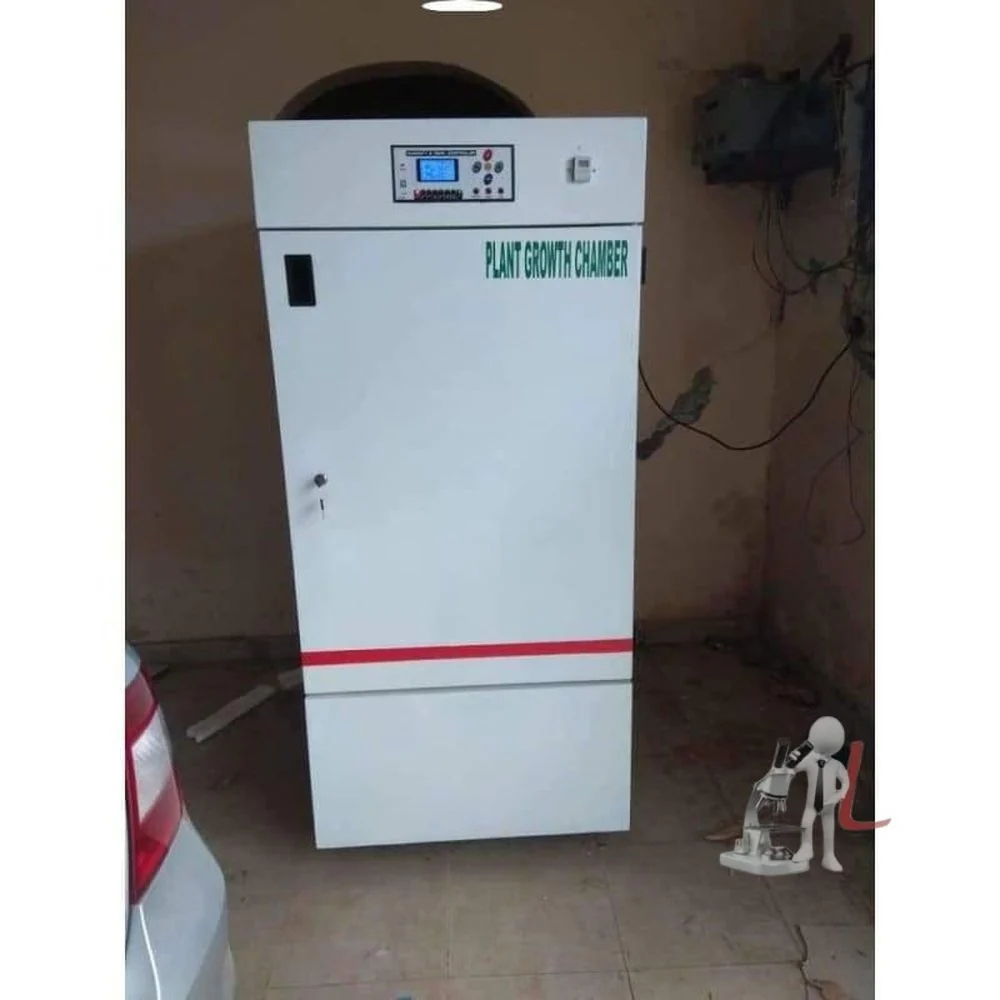

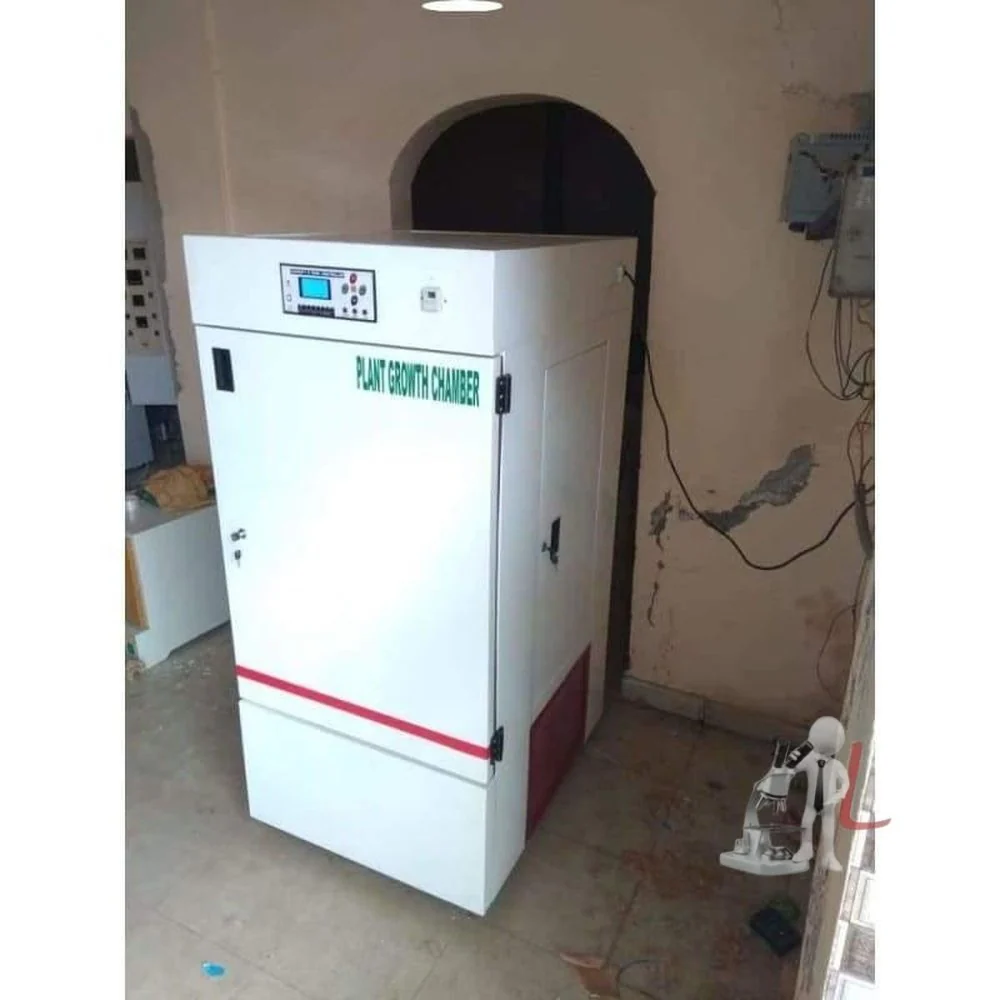

Plant Growth Chamber Manufacturer supplier in Jammu and Kashmir

Plant Growth Chamber Manufacturer supplier in Jammu and Kashmir

Inside made of stainless steel sheet. Outside mild steel sheet with finished in white stoving enamel/powder coated paint with mat finished colour combinations.. Fitted with cooling, heating and lighting arrangements. Temperature range 5º C to 50º C ± 1º C. Temperature can be obtained from 15º C to 50º C ± 1º C when all lights from two sides and top are ‘ON’. Temperature is controlled by DUAL temperature for day and night. Above Growth chamber is complete with Humidity control from 55% to 95 % RH. Light intensity can be adjusted controller according to requirement and Humidity shall be controlled by Humidistat. Complete with 0-24 hours. Timer. To work on 220/230 volts 50cycles A.C. Only

Sizes: W H D Capacity in cft. Capacity Approx.

a)  12 cft

Applications

Plant growth chambers and plant growth walk-in rooms are widely used in agriculture fields in order to do research on crop productivity. Plant related agriculture research and development are the prime applications of these units; plant breeding, plant nutrition, photosynthesis are some of areas where plant growth chambers play an important role. Plant categories may vary such as cereal, arabidopsis, algae, tobacco, physcomitrella, fungi, medicago, weeds, soybeans, potatoes and other commercial crops and horticulture plants etc.

Plant Growth Walk-in Room

To perform multiple experiments and for long or large sized plants that require maximum growth height, plant growth rooms prove to be right option. Such units are designed keeping in mind user flexibility, size and future requirements. A plant growth room has enough large and room sized space, where a person can step in easily. These units are completely customized and constructed according to the specific requirements and place available at laboratory. We construct plant growth rooms with different configurations such as short plant and tall plant configurations and 2 tier configurations, horizontal and vertical airflow etc.

Features:

Excellent temperature stability	Unparalleled light efficiency
High quality fluorescent lamps	Automatic microprocessor controls
Interlocked insulated panels	Stainless steel inner construction
High and low limit temperature protection	Printer and temperature chart recorder
Color touch control panel	Adjustable shelving arrangement
Uniform air flow inside chamber	Provision to connect with PC
User programmable alarm settings	Humidity up to 95%

Specifications:

Model	PGC-175	PGC-300	PGC-864
Chamber Capacity	175 Liters	300 Liters	864 Liters
Illumination	Max. 23000 Lux	Max. 23000 Lux	Max. 35000 Lux
Cooling Device	Hermetically sealed Compressor(1/3 HP)	Hermetically sealed Compressor(1/2 HP)	Hermetically sealed Compressor (1 HP)
Shelves	3 EA	4EA	8EA
No. of Doors	Single	Single (Double Optional)	Double Doors
Temperature
Range	0°C to 60°C (Light ON: 10°C to 60°C)
Accuracy	±0.5°C at 20°C
Controller	Microprocessor PID controller
Humidity
Range	50% to 95% RH
Accuracy	±3%
Controller	Microprocessor PID controller
Sensor	Electronic Device
Construction
Interior Construction	Stainless Steel 304 Grades (Stainless Steel 316-optional)
Exterior Construction	MS Powder Coated (Stainless Steel 304 / 316 Grades - Optional)
Insulation	Glass Wool
Interior Doors	Tempered Glass Door w/ Silicone Packing
External Doors	Solid Doors w/ Magnetic Gum Packing
Shelves' Construction	Stainless Steel
Other:-
Illumination Type	Fluorescent Lamp
Refrigerant Gas	R-134a Eco-Friendly Gas
Safety Device	- Leakage breaker for power supply - Over current protector - Overheat protector - Water - Level Monitoring Auto Control System
Optional Accessories	- Color touch screen controller for Humidity & Temperature - RS 232 port - Printer - Chart recorder - Caster wheels - Extra shelves - DQ, OQ, PQ & IQ Certificates
Power Supply	220 / 240 Volts
Certifications	GMP, ISO & CE Certified

Applications:

Agriculture Industries	Crop Motivation	Crop Genetic Engineering
Plant Breeding	Micro Biology	Photosynthesis
Bio Chemistry	Genetic Research	Biological Studies
Arabidopsis	Entomology Research	Tissue Culture

We Support You

Plant growth room consultation	Turn-key projects
On-site project management	Installation, commissioning and validation
Integration into local BMS and other facilities	Providing training to customer's personnel
Full user, client co-ordination	Printer and temperature chart recorder

If you would like to place a request for plant growth chamber price list or quotation, please email us details, our customer executive will assist you till you get 100% satisfaction. In addition to supply all over India, we also undertake export orders from Asia, Africa and Middle markets.

a) 450X450X600mm 4Cu.ft. 112 Liter

OPTIONAL:
Automatic Voltage Stabilizer (recommended)
