DIGITAL BOMB CALORIMETER



 Used for determination of combustion of heat of colorific value of the fuel

• other organic material like Coal Designed as per specification of Institute of Petroleum BS 1016 standard IS no. 1350/1966



Accuracy ⁺- 200-250cal/gm (5% Approx)



SPECIFICATION:

Bomb Calorimeter Apparatus provide a simple and inexpensive method for determination of heat of combustion of organic matter and the calorific value & sulphur content of solid & liquid fuel. The outfit supplied is complete for analysis as per the method recommended by British Standard Institution All parts of the outfit have been finished and tested according to the specification laid down by Institute of petroleum and British Standard Institute.







INTRODUCTION



TESTING OF BOMB

Each Bomb is tested before it leave the factory in accordance with requirements of the institutes of petroleum (I.P.12/63T Appendix 1)and works certificate is issued with each Bomb . This certificate gives the results of hydraulic testing under a pressure no 300 atmospheres (400p.s.i) maintained for a period of ten minutes without sign leakage. The maximum deformation must not exceed the specified limits.



CALORIMETER VESSEL

The vessel is made of copper and is chromium plated or S.S. includes a Bomb Support that Ensures proper positioning of Bomb in the vessel.

WATER JACKET

The outer container of jacket is made of copper and is chromium plated both inside outside and S.S. The top is closed by an ebonite cover. A terminal block is fitted to the top container so that connection can be made from the control.



OFFSET STIRRER

The stirring mechanism supplied gives sufficient turbulence for effective stirring whilst no heat imparted to the calorimeter water. It consists of an impeller stirrer driven at a constant speed of approximately 800 r.p.m. The offset arrangement whereby the motor drives the impeller via a bell precludes any possibility of heat transference between motor and calorimeter vessel contents.



ELECTRONIC FIRING UNIT WITH DIGITAL BACKMAN THERMOMETER

The firing a calorimeter Bomb AC supply main 230 Volts 50 AC supply. It consists of two parts VIZ Electronic Box for Digital Thermometer reading. The Electrical Box is provided with socket for stirrer and terminals for the fuse wire. The unit has provision for the test of firing wire resistance or open circuit.



A LEFT HAND INDICATE THE CONTINUTY WHILE RIFHT HAND SIDE BULB INDICATES THE OPEN CIRCUIT (FIRING)













ACCESSORIES ARE GIVEN BELOW;

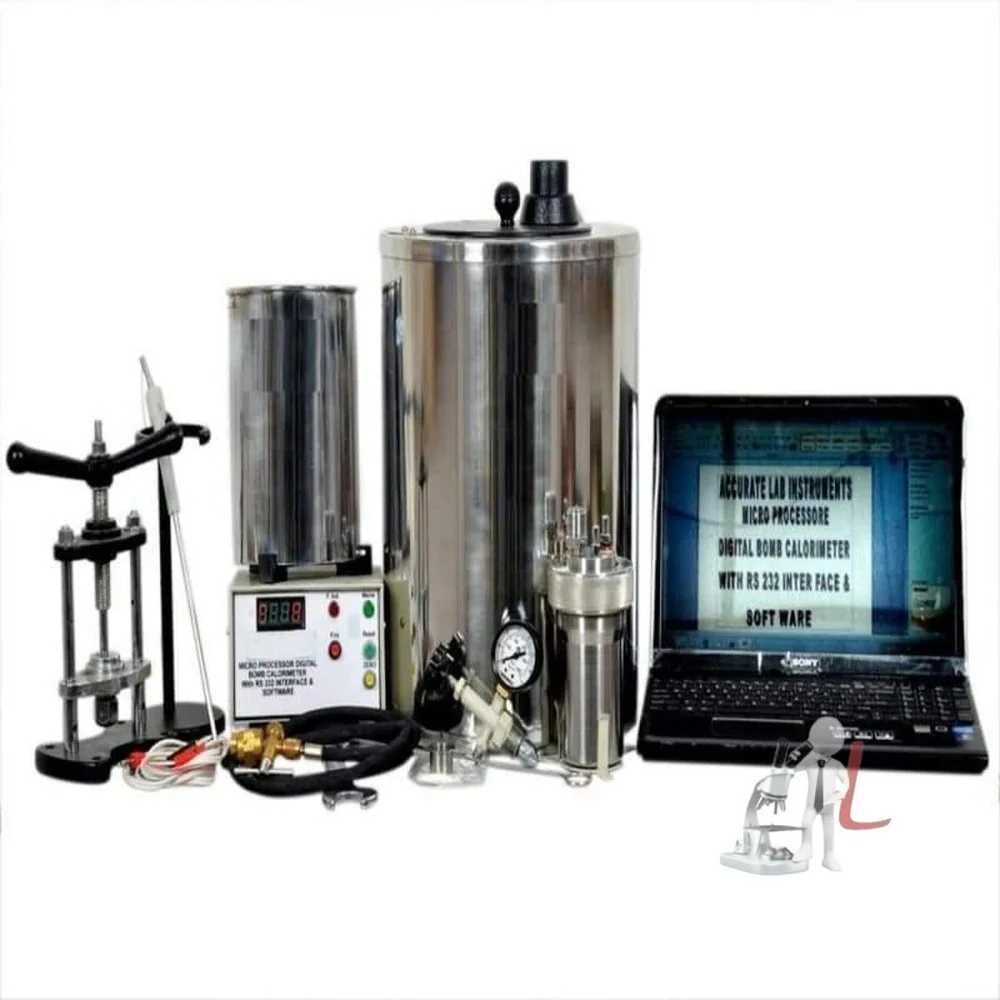

		Digital Bomb Calorimeter with following items:
S .no		Name of item	Units
1.		Pressure valve	1
2.		Spanner	1pcs
3.		Valve key	1
4.		Connecting rubber pipes (one small and one big)	2pcs
5.		Pressure gauge with stand	1pcs
6.		Tablet making machine with die & mould	1 set
7.		Bomb shell with connecting cord	1 set
8.		Temperature sensor	1pcs
9.		Digital control and firing unit	1pcs
10.		Motorized Stirrer	1pcs
11.		SS Jacket with lid	1pcs
12.		SS Calorimeter	1psc
13.		Rubber ‘O’ ring (big & small)	8pcs
14.		Nichrome wire	1 bundle
15.		Ignition thread	1 bundle
16.		Bomb shell air valve with tightener	1 set
17.		Pressure release device	1pcs
18.		Safety valve with stand (with extra accessories)	1 set
19.		Copper tube for connecting safety valve	1set
20.		Benzoic acid	50gm
21.		Operation manual	1
22 .		CD for Installation purpose	1 CD



KEY FEATURES:- Model : DCBC-142

1.MICROPROSSER BASED AUTOMATIC MEASUREMENT OF CALORIFIC VALUE.

2. AUTOMATIC CALCULATION OF CALORIFIC VALUE AND WATER EQUIVLENT.
3. 16 X 4 LINE LCD DISPLAY (BLUE COLOUR).
4. BIG JUMBO LCD DISPLY.
5. PRINTER INBUILT.

6.16 KEY PAD SOFT TOUCH.

7. WEIGHT OF TABLET FEEDABLE.
8. FULL TEST REPORT PRINTOUT WITH DATE AND TIME.



9. ALARM ON FIRING & AFTER TEST COMPLETED.
10. FUSE WIRE OPEN INDICATION.
11. SELECTABLE TYPE OF TEST WATER EQUIVLENT TEST & SAMPLE TEST.
12. INTERNAL DATA LOGGER WITH COMPUTER INTERFACE.
13. PC SOFTWARE OF DATA RECORD.
14. PRINTOUT THE SETTING VALUES
15. SOFT POWER ON FOR SYSTEM.
16. RESET BUTTON FOR NEXT SAMPLE
